Building an AsciidoctorJ extension to execute JavaScript

Posted at — Oct 8, 2017

I love using Asciidoctor for writing documentation. I mainly got to know it through the excellent Spring REST Docs project.

I wanted to build an extension (kind of a plug-in) for Asciidoctor. As I don’t know Ruby, writing an extension in Ruby was a bit too much. Luckily, there is AsciidoctorJ (The JVM version of Asciidoctor) which lets me write extensions in any JVM language. Here, we will be using plain Java, but Groovy for example would work equally well.

In this example, we will be writing one liners of JavaScript in an asciidoctor document. The extension will execute the JavaScript using Oracle Nashorn. It has been part of Java since Java 8 and allows to execute JavaScript on the JVM.

As an example, we will use this asciidoc document:

= Example document

The below block will be interpreted by the Nashorn Javascript runner in Java 8.

The source is `2+2`, the output should only contain the result of the calculation.

[javascript-exec]
----
2+2
----

This is some other text

To get started, we create a build.gradle file like this:

group 'org.asciidoctor.extension'

version '1.0-SNAPSHOT'

apply plugin: 'java'
apply plugin: 'maven'

sourceCompatibility = 1.8

repositories {
    mavenCentral()
}

dependencies {

    compile 'org.asciidoctor:asciidoctorj:1.5.5'

    testCompile 'junit:junit:4.12'
    testCompile 'org.assertj:assertj-core:3.8.0'

}

With a settings.gradle like this:

rootProject.name = 'asciidoctorj-javascript-extension'

Next, in the src/main/java directory, we create the org.asciidoctor.extension.javascript.JavaScriptExecutionBlock class:

package org.asciidoctor.extension.javascript;

import org.asciidoctor.ast.AbstractBlock;
import org.asciidoctor.extension.BlockProcessor;
import org.asciidoctor.extension.Reader;

import javax.script.ScriptEngine;
import javax.script.ScriptEngineManager;
import javax.script.ScriptException;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class JavaScriptExecutionBlock extends BlockProcessor {

    private static final ScriptEngine SCRIPT_ENGINE = new ScriptEngineManager().getEngineByName("nashorn");

    public JavaScriptExecutionBlock(String name, Map<String, Object> config) {
        super(name, createConfig());
    }

    @Override
    public Object process(AbstractBlock parent, Reader reader, Map<String, Object> attributes) {

        String jsResult;

        try {
            jsResult = SCRIPT_ENGINE.eval(reader.read()).toString();
        } catch (ScriptException e) {
            e.printStackTrace();
            jsResult = e.getMessage();
        }
        return createBlock(parent, "paragraph", jsResult, attributes, new HashMap<>());
    }

    private static Map<String, Object> createConfig() {
        Map<String, Object> result = new HashMap<>();
        result.put("contexts", createContextsConfig());
        return result;
    }

    private static List<String> createContextsConfig() {
        List<String> contexts = new ArrayList<>();
        contexts.add(":open");
        return contexts;
    }

}

We get the text that is put in the asciidoc document for the extension by using reader.read(). We run this through the ScriptEngine and put the result in a new paragraph block.

To have Asciidoctor use our extension, we need 2 additional things:

A class extending ExtensionRegistry that will indicate what the name of the extension is to use in the document
A file called org.asciidoctor.extension.spi.ExtensionRegistry in the META-INF/services package

The JavaScriptExtensionRegistry:

package org.asciidoctor.extension.javascript;

import org.asciidoctor.Asciidoctor;
import org.asciidoctor.extension.spi.ExtensionRegistry;

public class JavaScriptExtensionRegistry implements ExtensionRegistry {

    @Override
    public void register(Asciidoctor asciidoctor) {
        asciidoctor.javaExtensionRegistry().block("javascript-exec", JavaScriptExecutionBlock.class);
    }
}

The org.asciidoctor.extension.spi.ExtensionRegistry file:

org.asciidoctor.extension.javascript.JavaScriptExtensionRegistry

That is all that there is to it really. If you now want to use your extension, you just install it to your local repository through Gradle. Then you can use in the Gradle build that builds your document like this:

buildscript {

    repositories {
        mavenLocal()
        jcenter()
    }

    dependencies {
        classpath 'org.asciidoctor:asciidoctor-gradle-plugin:1.5.3'
        classpath 'org.asciidoctor:asciidoctorj-pdf:1.5.0-alpha.15'
        classpath 'org.asciidoctor.extension:asciidoctorj-javascript-extension:1.0-SNAPSHOT'
    }
}

apply plugin: 'org.asciidoctor.convert'

asciidoctor {
    backends 'pdf', 'html5'
    sourceDir = file('src/main/asciidoc')
}

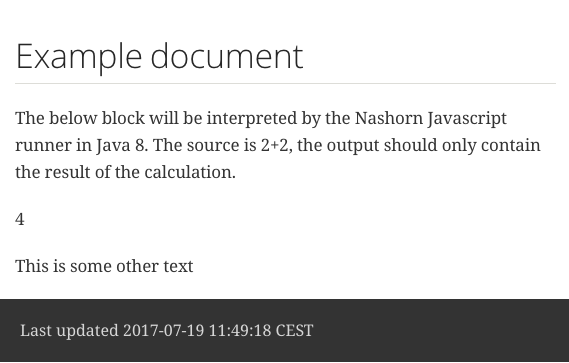

Notice the 3rd dependency that points to our just created extension. The result is a HTML and PDF page with the JavaScript result inside. This is a screenshot of the HTML output:

And that is all it takes to build an extension for AsciidoctorJ.

This know-how originated during the development of a PegusApps project.
